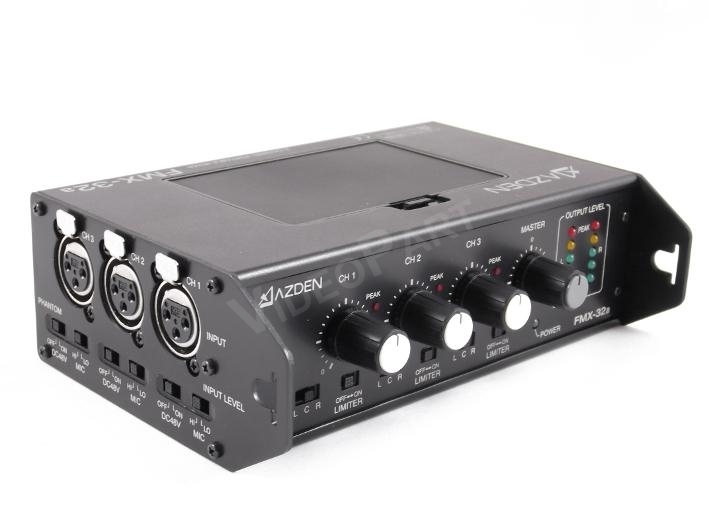

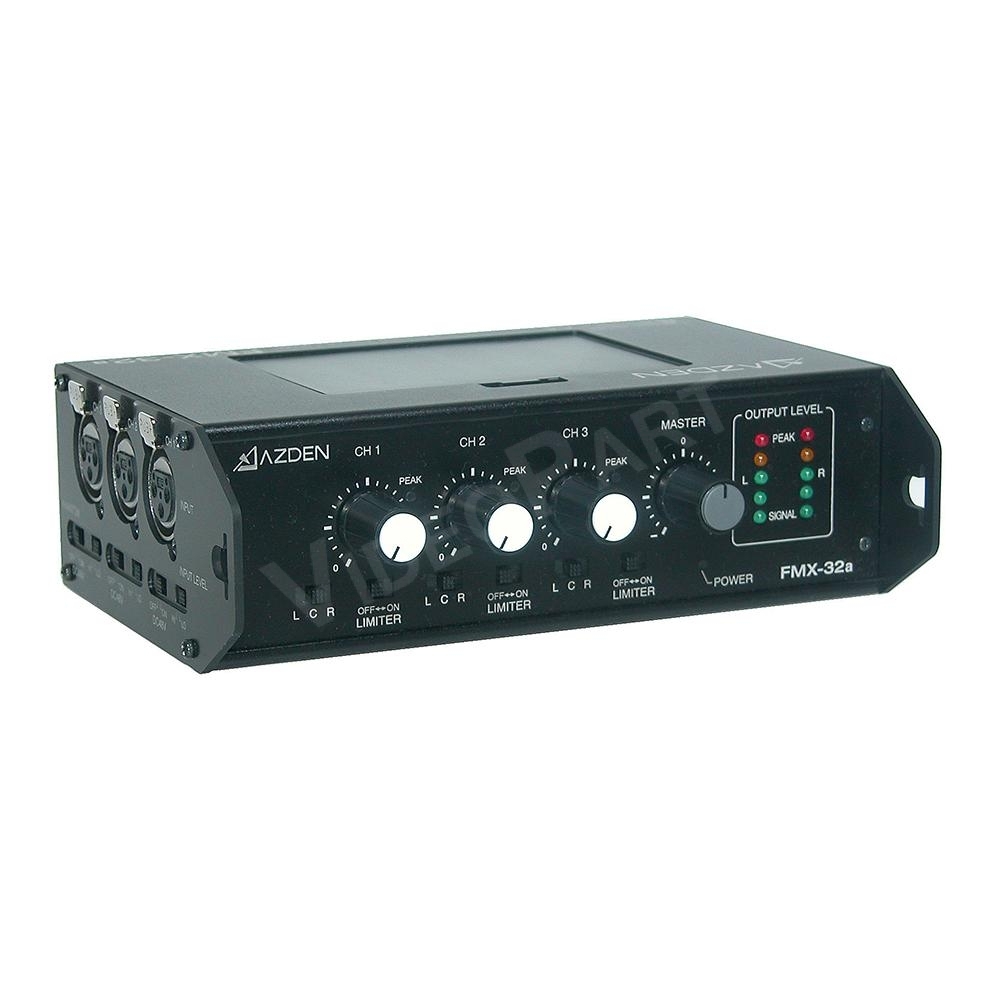

AZDEN AZDEN-FMX-32A AZDEN FMX-32A, 3 bemenetes hordozható hangkeverő

tulajdonságok:

• 3 balanced XLR mic inputs and pan controls
• Switchable 48V phantom power and limiting
• 5-step LED master bus meters

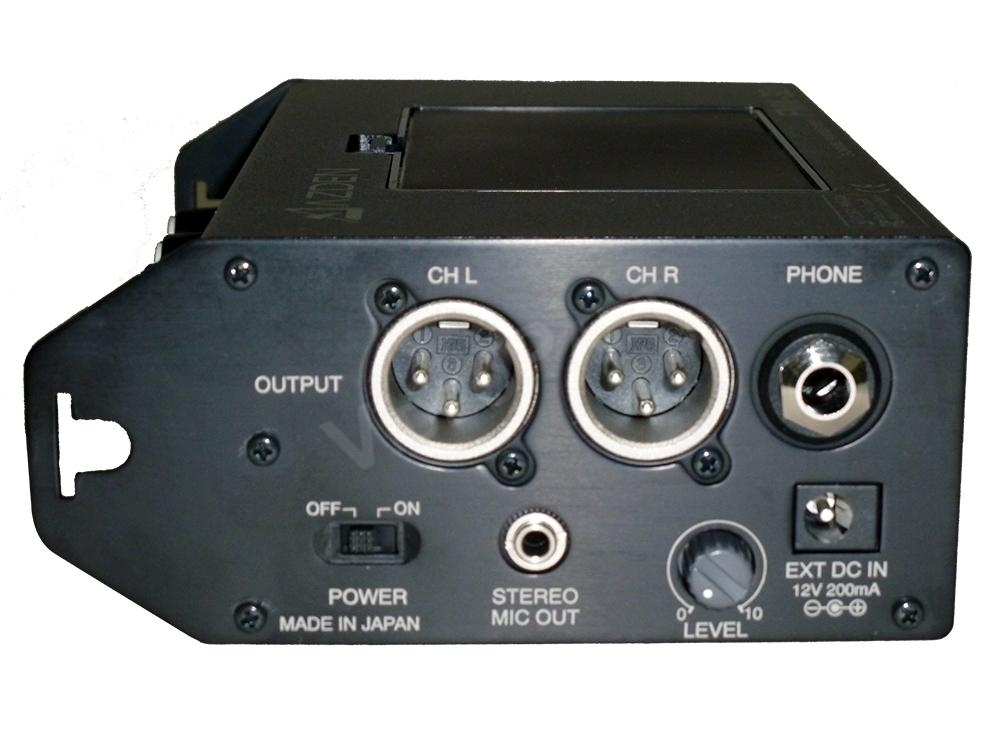

• 2 balanced XLR outputs
• Stereo mini-jack output for DSLR cameras
• Headphone out with level control
• 6x AA battery powered
• Optional A/C adapter

műszaki adatok:

• • Frequency Response
  • Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
  • Monitor Output: 50-17,000Hz (-3dB)






  •
  •
  • Noise Level
  • Left & Right Channel:-120dBu (A weighted, Input Equivalent Level)
  • T.H.D.: less than 0.005% @ 1KHz (+10dBu output)






  •
  •
  • MIC Input Level
  • LO -20 dBu Gain -6Db
  • HI -3dBu Gain +45Db






  •
  •
  • Monitor Output
  • 3.5mm Stereo: -4dBu (32 ohm load)
  • (Recommended load 16-100 ohms)






  •
  •
  • Maximum Output Level
  • Balanced Output: +20dBu (5K ohms)
  • Unbalanced Output (3.5mm) -19dBu (2K ohms)






  •
  •
  • Battery Type/Duration
  • 6 – AA Alkaline – 15 hours






  •
  •
  • Current Drain
  • 47mA nominal (Phantom Power Off)
  • 100mA maximum (Phantom Power On)






  •
  •
  • Phantom Power
  • Voltage: 48VDC (+/- 4VDC)






  •
  •
  • Dimensions
  • Size: 53.5H x 170W x 120D mm (2.19 x 6.93 x 4.75 inches)
  • Weight w/o Battery: 26.45 ounces (750 grams)
