Power Requirements | 12 V DC, DC 42 V to 57 V (PoE++ power supply) | |
---|---|---|
Mass | Approx. 3.5 kg (7.72 lb) | |
Dimensions (W x H x D) | 364 mm x 178 mm x 245 mm (14-11/32 inches x 7 inches x 9-21/32 inches) (excluding protrusions) |
|

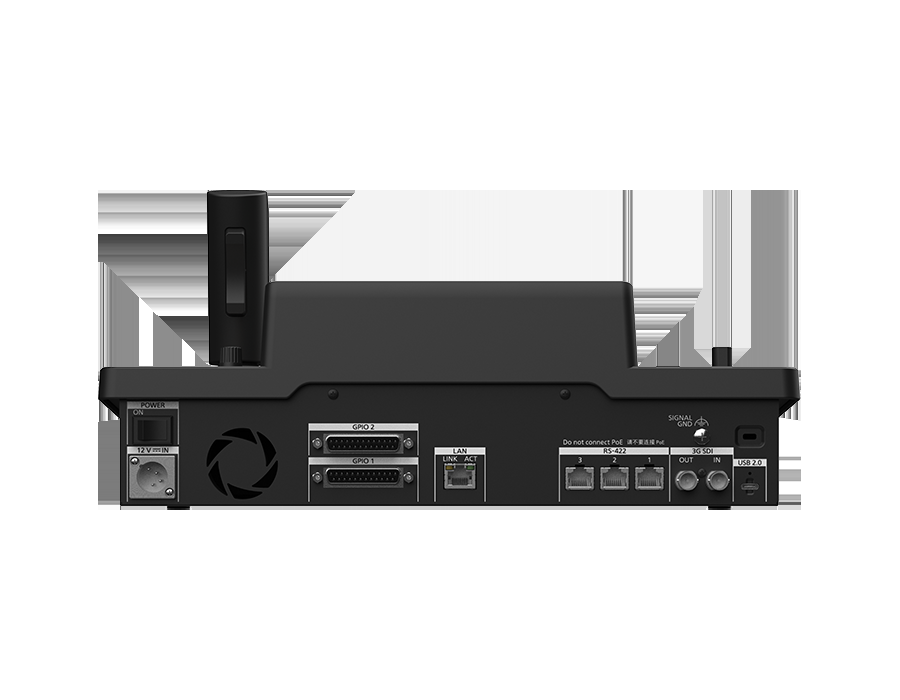

Input/Output Connectors | ||
Input | DC 12 V IN | XLR 4‑pin |
3G-SDI IN | SMPTE424M*1/SMPTE292M / 75 Ω (BNC x 1) | |
Output | 3G-SDI OUT | SMPTE424M*1/SMPTE292M / 75 Ω (BNC x 1) |
Input/Output | LAN | IP Control LAN Port (RJ-45) |
RS-422(1-3) | Serial Control Port (RJ-45) | |
GPIO | D‑sub 25‑pin x2 | |
USB | USB Type-A/Type-C (USB2.0) | |
Input/Output | ||
LCD Display | 7-inch Touch Panel GUI Monitor (WVGA(800×480)) | |
Connection Specifications | ||
No. of Connectable Cameras | 200 (IP), 3 (RS-422) | |
No. of Camera Selection Buttons | 20 | |
Memory | ||
Preset Memory | No. of memory presets 100 per camera | |
Tracing Memory | Maximum of 10 settings per camera (CAM1 to CAM10) | |
Macro Memory | No. of macros 100 |
